Telescopic Paper Straws for Compact Carton-Side Space

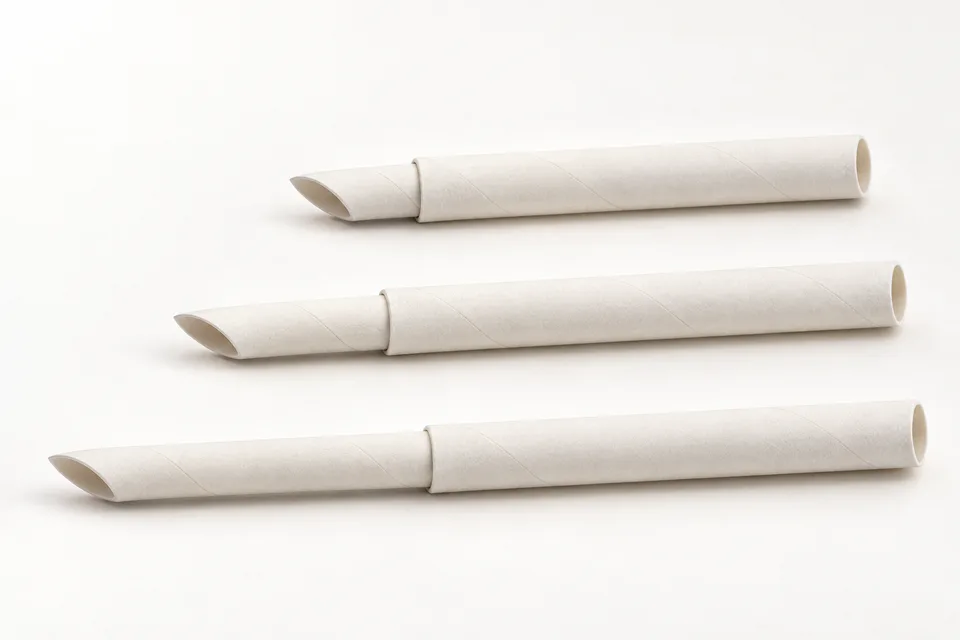

Telescopic paper straws use two engaged sections to provide a shorter packed length and a longer extended drinking length. The sample must be reviewed for tube fit, extension force, retention during use and wrapper access.
When Is a Telescopic Format the Right Starting Point?
Review a telescopic format when the carton-side pack must remain short but the user requires more drinking reach than that packed length can provide. Both the closed and extended states must be included in the specification.
Which Details Control Telescopic Performance?
| Specification input | What it controls | How it is confirmed |
|---|---|---|
| Packed length | Fit on the available carton side panel | Carton drawing |
| Extended length | Final drinking reach | Carton geometry and user position |
| Inner tube | Movement and engagement with the outer section | Sample specification |
| Outer tube | Structural support and interface with the inner section | Sample specification |
| Engagement zone | Retention between the two sections after extension | Sample inspection |
| Extension force | Effort needed to prepare the straw for use | Sample handling check |
| Pull-out resistance | Resistance to unintended separation | Sample handling check |
| Tip and opening position | Access to the applicable carton opening | Carton and sample check |
| Wrapper length and seal | Protection of the packed two-section format | Wrapper specification |
Why Must Both States Be Approved?
The packed state determines carton-side fit and wrapper handling. The extended state determines user reach, section engagement and stability during drinking. Approving only one state leaves an important performance question unresolved.
What Should the Sample Demonstrate?
- The wrapped unit fits the available carton-side area.
- The inner and outer sections move as intended.
- The required extension can be achieved without unintended separation.
- The sections remain engaged during the applicable drinking check.
- The final reach and piercing position suit the carton.
- The wrapper protects the packed configuration and remains practical to open.
What Information Makes the First Sample More Useful?
- Carton drawing and available attachment area
- Maximum packed length
- Required extended drinking length
- Target diameter or existing product sample
- Opening-film and straw position
- Wrapper, printing and attachment requirement
- Beverage type and destination market
- Estimated annual volume and packing requirement
Common Reference Sizes for Telescopic Carton Straws
A widely published compact-carton paper-straw reference uses a 4.6 mm diameter, a 102 mm packed length and a 165 mm extended length. PaperStrawTech’s existing telescopic reference range lists upper-tube outside diameters of 5–10 mm, lower-tube outside diameters of 3.4–8.4 mm and extended lengths of 130–180 mm. These values represent different configuration families and must not be combined automatically. A telescopic straw must be engineered and approved as one matched two-tube system.
| Reference Type | Parameter | Reference Value | Project Requirement |
|---|---|---|---|
| Published compact-carton example | Diameter | 4.6 mm | Confirm tube construction, carton hole and beverage-flow requirement |
| Published compact-carton example | Packed length | 102 mm | Confirm available carton-side attachment space |
| Published compact-carton example | Extended length | 165 mm | Confirm user reach and engagement after extension |
| Existing PaperStrawTech configurable reference | Upper-tube OD | 5–10 mm | Select together with lower tube and required engagement |
| Existing PaperStrawTech configurable reference | Lower-tube OD | 3.4–8.4 mm | Confirm fit, sliding behaviour and retention |
| Existing PaperStrawTech configurable reference | Extended length | 130–180 mm | Confirm packed length, carton height and user reach |
| Project specific | Engagement / overlap | To be confirmed by drawing and sample | Define minimum acceptable engagement at full extension |
| Project specific | Extension force | To be confirmed by approved test method | Avoid both difficult extension and accidental movement |
| Project specific | Pull-out resistance | To be confirmed by approved test method | Confirm that the two tubes remain engaged during intended use |
Packed length, extended length and tube diameters must be reviewed together. Do not describe the telescopic straw only by its fully extended length.
Reference dimensions support RFQ preparation and sample development. They are not a universal stock-size list or a guarantee of direct replacement. Final dimensions, tolerances and line behavior require project-specific drawing and sample validation.
Questions About Telescopic Paper Straws
What is the difference between packed and extended length?
Packed length is the length of the closed two-section unit attached to the carton. Extended length is the final drinking reach after the inner and outer sections are moved into the use position.
What does tube engagement mean?
Tube engagement is the overlapping or interacting zone that keeps the two sections connected in the intended use position. It should be assessed through the approved sample.
Why is extension force important?
The user must be able to prepare the straw for use, while the sections must not move or separate unintentionally. The acceptable behavior is established through project-specific sample review rather than a generic claim.
Can a telescopic straw be selected only from the carton height?
No. Available side-panel space, required drinking reach, opening position, wrapper and the behavior of both tube sections must be considered together.
